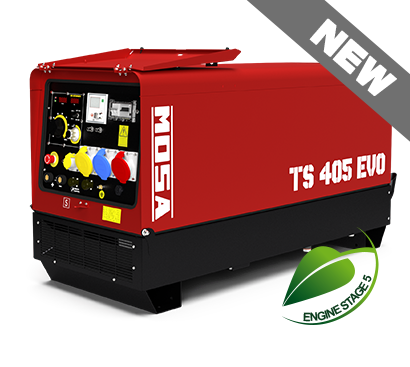

MOSA TS 405 EVO - Control Industrial Engine Driven Welder

MOSA TS 405 EVO - Control Industrial Engine Driven Welder

by MOSA
SKU 35.C1KS10CP
£14,103.60 - £14,103.60
£14,103.60
£14,103.60 - £14,103.60
£14,103.60
Get an Additional Discount!

Simply use the code WELD5 at the checkout to get even more savings when you spend £250 or more...

Warranty Information

All MOSA products come with a 2-Warranty as standard. Click here to find out more

Unsure? Get in touch...

We are always happy to help. If you have any questions or can't find what you are looking for just give us a call on 01375 800761 or email us at sales@toolweld.co.uk

Engine Driven Welder Diesel KOHLER KDW1003 - Three-phase asynchronous Alternator -  Water cooling

WELDING

  • Welding current: 20A / 20.8V ÷ 400A / 20V (Stick)  |  20A / 10.8V ÷ 400A / 20V (Tig)
  • Service: 330A @ 33.2V / 60%  -  300A @ 32V / 100% (Stick)  |  380A@ 25.2V / 35%  -  330A@ 23.2V/ 60%  -  300A@ 22V / 100% (Tig)
  • Open circuit voltage (no-load voltage): 75 Vcc (79 Vcc peak)

POWER RATINGS

  • Three-phase power: 14 kVA (11.2 kW) / 400 V / 20.2 A
  • Single-phase power: 8 kVA/kW / 230 V / 34.8 A
  • Single-phase power: 4 kVA/kW / 110 V / 36.4 A
  • Single-phase power: 5 kVA/kW / 48 V / 104 A

GENERAL SPECIFICATION

  • Tank capacity: 38 l
  • Running time (welder 100%): 11.5 h
  • Guaranteed acoustic power LwA (pressure LpA): 96 dB(A) (71 dB(A) @ 7 m)
  • Measured acoustic power LwA (pressure LpA): 94.7 dB(A) (69.7 dB(A) @ 7 m)
  • Weight: 455 Kg
  • Dimensions max. on base Lxlxh:  1433x710x945 mm

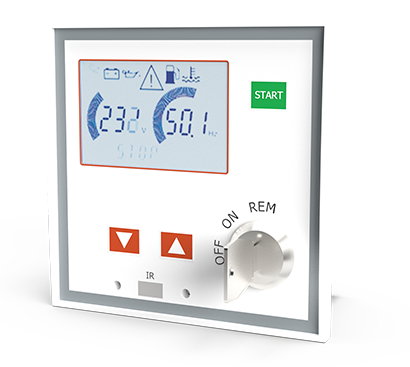

The Lovato RGK420SA control unit has an ignition key and push buttons for controlling the engine. A wide LCD display allows the visualization of alarms and the monitoring of machine parameters. The main features are:
  • User interface with symbols, codes and texts.
  • Setpoints adjustable via controller buttons or PC
  • Remote Start and Stop
  • Configurable inputs and outputs
  • NFC interface for wireless programming

EVO CONTROL is the front panel that using an analog control allows to have features mandatory for users:

  • Current control
  • Arc-force control
  • Half scale to increase the precision of the current control
